Coe Fiat Truck Collection / N.1 : 1939 FIAT 626/N – Paper model 1/66 scale

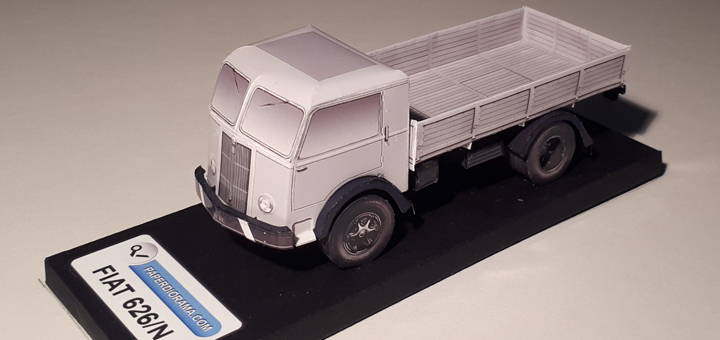

FIAT collection N.1 photo1

Unified Truck Fiat 626 was a medium Italian truck produced by Fiat Veicoli Industriali.

The 626, which replaced the 621 on the assembly lines, was the first truck of the Turin-based company with an advanced cabin (COE), that is, with the engine totally contained inside the cabin. The chassis was spars on two axles, with front steering and rear driven wheels, the 5750 cm³ 6-cylinder diesel engine developed 70 hp at 2200 rpm and was characterized by the innovative arrangement on guides that allowed a simple and rapid replacement. The gearbox was 4 forward and one reverse.

Download Coe Fiat Truck Collection / N.1 : 1939 FIAT 626/N – Paper model 1/66 scale


Coe Fiat Truck Collection / N.2 : 1952 FIAT 642/N – Paper model 1/66 scale

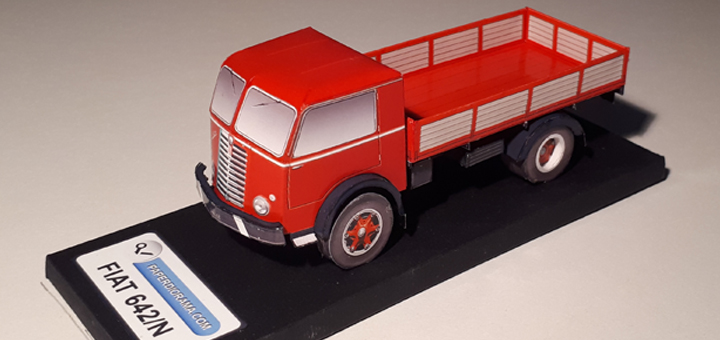

FIAT collection N.2 photo2

The Fiat 642 is a truck produced by Fiat Veicoli Industriali since 1952. It was built with this cabin until 1955.

The first versions were equipped with the Fiat 364 engine, a 6032 cm³ 6-cylinder engine that delivered between 92 and 100 HP at 2000 rpm.

Download Coe Fiat Truck Collection / N.2 : 1952 FIAT 642/N – Paper model 1/66 scale


Coe Fiat Truck Collection / N.3 : 1952 FIAT 682/N 125 – Paper model 1/66 scale

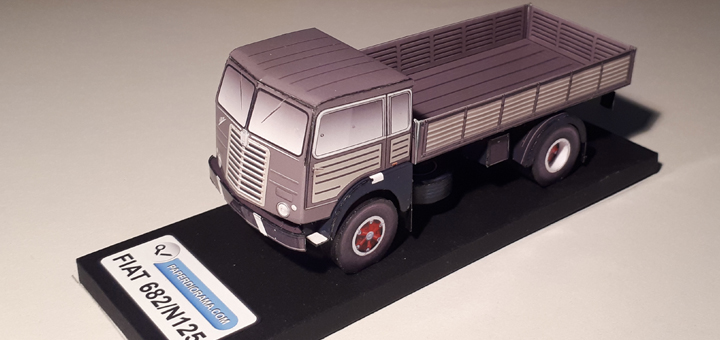

FIAT collection N.3 photo3

In 1952 Italy adopts a new highway code, which imposes new regulations regarding the extent of trucks.

Because of this, at the end of the year, Fiat replaces the 680N, in production since 1948, with a new model: the 682N. The first model produced resumes (with a slight increase in power) the engine of the 680, that is, a 6 cylinder with 10.17 liters of displacement and 122 mm of piston bore, and is therefore called Fiat 682 “122”. The chassis, cab, gearbox and differential are newly designed.

Download Coe Fiat Truck Collection / N.3 : 1952 FIAT 682/N 125 – Paper model 1/66 scale


Coe Fiat Truck Collection / N.4 : 1961 FIAT 690/N 1 – Paper model 1/66 scale

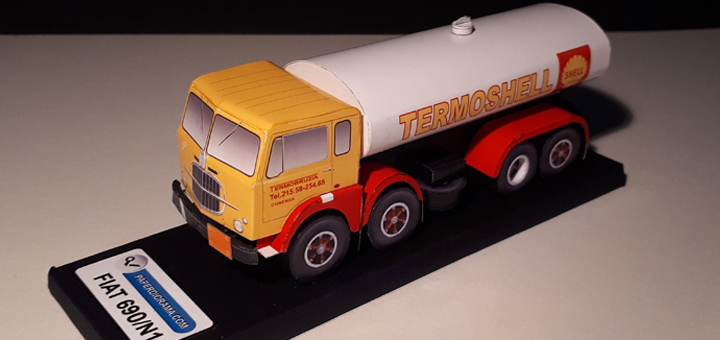

FIAT collection N.4 photo4

The Fiat 690 model derives from 682 of 1952, it was a truck that positioned itself at the top of the range in terms of weight, size and performance.

The Fiat 690 in the N (truck) and T (tractor) ranges distinguished the production of Fiat heavy trucks of the 1960s.

The presentation of the Fiat 690 dates back to 1959, with the 690 N and T models, the engine is a Fiat 203, six cylinder of 10,676 cc. power 152 HP. The 690 belonged to the “6×2 Truck” series with 2 steering axles at the front, PTT up to 22 tons, and towable weight of 18 tons.

Download Coe Fiat Truck Collection / N.4 : 1961 FIAT 690/N 1 – Paper model 1/66 scale


Coe Fiat Truck Collection / N.5 : 1970 FIAT 691 – Paper model 1/66 scale

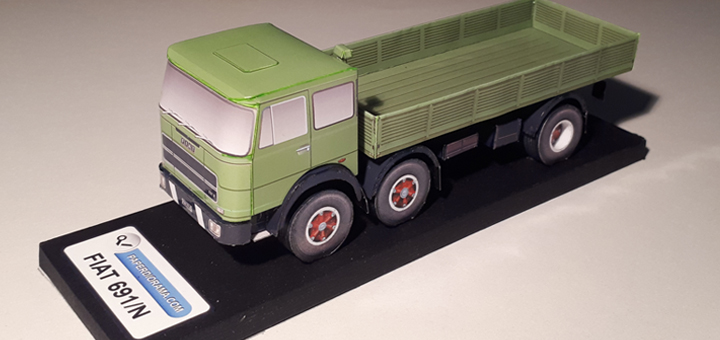

FIAT collection N.5 photo5

The 691 (1971_1974) was equipped with a totally new, more squared cabin, which appeared for the first time in France branded “Unic” in the late 1960s, then also adopted in Fiat.

Vertical front engine, direct injection, 6 cylinders in line bore 137 mm, stroke 156 mm, 13798 cc, 225 hp din, forced lubrication by gear pump, water cooling, dry two-disc clutch, 8-speed forward gearbox, 8 reduced and 8 normal, 2 on the back one normal and one reduced, suspension with single flexibility leaf springs for each of the 2 front axles and with double flexibility leaf springs.

Download Coe Fiat Truck Collection / N.5 : 1970 FIAT 691 – Paper model 1/66 scale
